2MP 10x Zoom AI ISP Based Global Shutter Network and MIPI Dual Output Camera Module

2MP 10x Zoom AI ISP Based Global Shutter Network and MIPI Dual Output Camera Module

>1/2.6” Global Shutter CMOS Sensor.

>Powerful 10x optical zoom (4.8~48mm).

>Max. 2MP(1920×1080) Resolution.

>Support various IVS functions.

>Support Electronic Defog.

>Support various OSD information overlay on network stream.

>Support MIPI digital video outputsynchronously.

> Hisilicon new generation AI noise reduction ISP, restoring the true color world.


    DOWNLOAD

    Product Detail

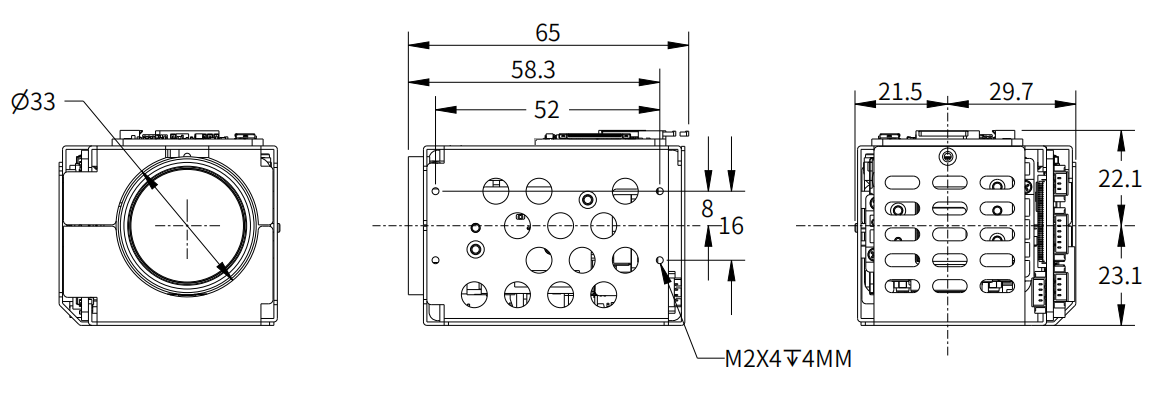

    Dimension

    Model

    SG-ZCM2010NMIL-G

    Sensor

    Image Sensor

    1/2.6” Global Shutter CMOS

    Effective Pixels

    Approx. 2.3 Megapixel

    Lens

    Focal Length

    4.8mm~48mm, 10x Optical Zoom

    Aperture

    F1.7~F3.2

    Field of View

    H: 61.93°~6.87°, V: 37.30°~3.87°, D: 69.09°~7.88°

    Close Focus Distance

    1m~5m (Wide~Tele)

    Zoom Speed

    < 4s (Wide~Tele)

    DORI Distance

    (Human)

    Detect

    Observe

    Recognize

    Identify

    640m

    254m

    128m

    64m

    Video

    Compression

    H.265/H.264B/H.264H/H.264M/MJPEG

    Streaming Capability

    3 Streams

    Resolution

    Main Stream: 50/60fps@(1920×1080, 1280×720)

    Sub-Stream1: 50/60fps@(704×576, 352×288, 352×240)

    Sub-Stream1: 50/60fps@(1280×720,704×576, 704×480)

    Video Bit Rate

    32kbps~16Mbps

    MIPI Video

    50Hz: 50fps@2MP(1920×1080)

    60Hz: 60fps@2MP(1920×1080)

    Network

    Network Protocol

    IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

    API

    ONVIF, HTTP API, SDK

    Web Browser

    IE, Edge, Firefox, Chrome

    User

    Up to 20 users, 2 level: Administrator, User

    Storage

    Micro SD/SDHC/SDXC card (Up to 1TB) edge storage, FTP, NAS

    Multicast

    Support

    Firmware Upgrade

    Only can upgrade the firmware via Network port.

    General Events

    Motion, Tamper, SD Card, Network

    IVS

    Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection.

    Target Distinction

    Human/Vehicle

    S/N Ratio

    ≥55dB

    Minimum Illumination

    Color: 0.01Lux/F1.7; B/W: 0.001Lux/F1.7

    Noise Reduction

    2D/3D/AI Noise Reduction

    Exposure Mode

    Auto, Aperture Priority, Shutter Priority, Gain Priority, Manual

    Exposure Compensation

    Support

    Shutter Speed

    1/1~1/30000s

    AGC

    Support

    BLC

    Support

    HLC

    Support

    WDR

    Support

    White Balance

    Auto, Manual, Indoor, Outdoor, ATW, Sodium lamp, Street lamp, Natural, One Push

    Day/Night

    ICR(Auto/Manual)

    Focus Mode

    Auto, Manual, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF

    Electronic Defog

    Support

    Heat Haze Reduction

    Support

    Flip

    Support

    EIS

    Support

    Digital Zoom

    16x

    External Control

    TTL

    Interface

    4pin Ethernet port, 6pin Power & UART port, 30pin MIPI

    Communication Protocol

    SONY VISCA, Pelco D/P

    Operating Conditions

    -30°C~+60°C/20% to 80%RH

    Storage Conditions

    -40°C~+70°C/20% to 95%RH

    Power Supply

    DC 12V

    Power Consumption

    TBD

    Dimensions(L*W*H)

    65mm*45mm*52mm

    Weight

    152g
